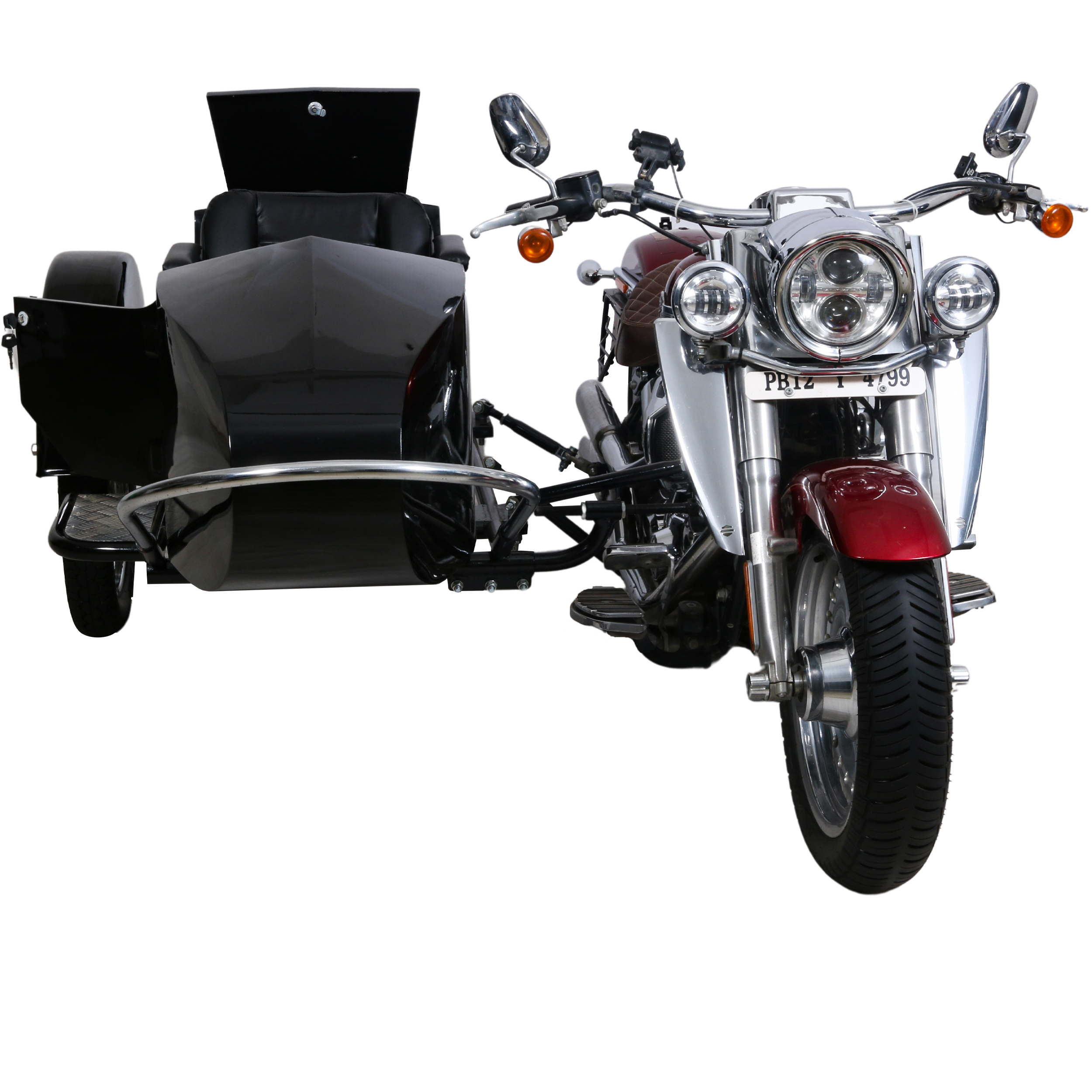

SAM SIDECAR IAI/S/005

Description

SPECIFICATION OF SAM  SIDECAR

SINGLE SEATER CHASSIS:-

Platform TYPE MILD STEEL PIPE ( OD 34MM X 26MM THICK ) For extra strength and vibration free.
ATTACH MENT TO MOTORCYCLE: –
Fabricated Steel Adopters bolts / Adjustable Rod bolt/ U Clamps on the support bar that connects the sidecar to the seat mount for lean in and out.

SUSPENSION: –

Independent wheel suspension with shock absorbers and trailing link unit having double ball bearing hub.

Wheel and Tyre:-

Interchangeable Pressed Steel wheel Rims with spocks ( 3.25 X 19 inch )

we also have option for tyre sizes :-

3.50 X 19 inch / 18 inch/ 17 inch/ 16 inch

BODY:-

Made from Imported CRC 20SWG, metal Body painted to match vehicle color. Body is connected to platform with LEATHER dampers to reduce vibration while driving entering the body of sidecar plus independent wheel suspension with shock absorbers to reduce wobbling during ride and smoothness in bumpy roads.
